Vantage Infusion (Email)

Requirements

To integrate Vantage Controls with AlertFleet, ensure the following prerequisites are met:

1. Vantage Infusion Controller.
2. Design Center with Send Email task's procedure support.
3. Internet Connectivity: The Vantage Infusion controller must be connected to the internet. Ensure the IP gateway is correctly configured.

warning

Vantage systems don't support SSL/TLS SMTP.

Please make sure you have a plan that includes the SMTP E-mail BOX.

Setup Instructions

Setup Vantage SMTP configuration

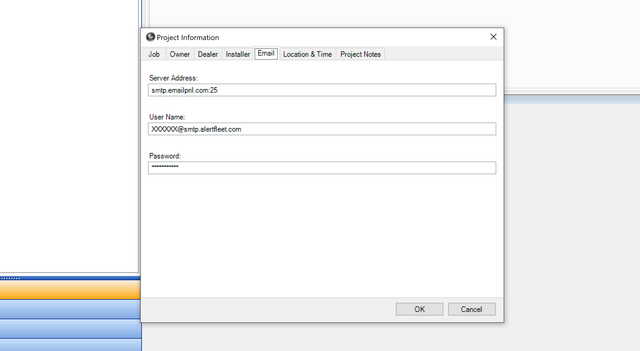

To configure your SMTP parameters for your Vantage controller:

1. Open the Design Center application.
2. On the top bar, select Settings, then Project Information, and select the Email tab.
3. Enter the following parameters:
   • Server Address: SMTP Host. You might need to use :25 suffix for certain DC versions.
   • User Name: SMTP User.
   • Password: SMTP Password.
4. Confirm with OK.
5. Program your Vantage controller. Please note that Update is not enough to apply the SMTP configuration.

Setup Vantage Task

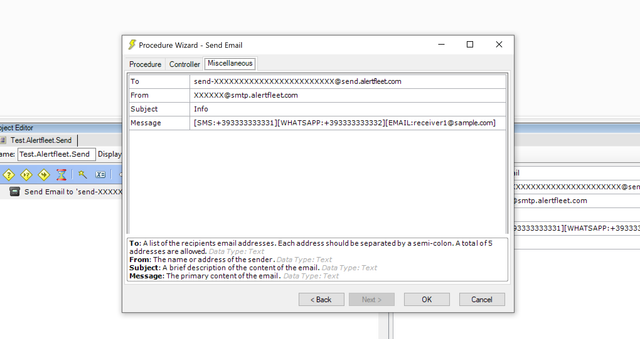

To configure email alerts from your Vantage system:

1. Open the Design Center application.
2. Go to the Programming View and create a new Task.
3. Launch the Procedure Wizard and select the Send Email procedure.
4. In the Miscellaneous section, fill in the required fields:
   • To, Subject, Message: Look at how to generate a trigger email
   • From: The SMTP User of your SMTP Email Box.

tip

Look at the E-mail Source to know how to prepare a trigger e-mail.

Troubleshooting

I have correctly configured the system but I am not receiving messages sent through the Vantage controller. However, sending works if done via an email client or through the API.
